Carbon Steel Orifice Flanges Manufacturer and Supplier In Cape Town, South Africa

Ronwen Flanges stands out as a top-notch manufacturer and supplier of **Carbon Steel Orifice Flanges** right from **Cape Town, South Africa**. With a reputation built on precision engineering and unwavering quality, Ronwen Flanges provides orifice flanges that not only meet international standards but also cater to a variety of industrial needs. These flanges are expertly crafted for flow measurement systems, ensuring tight tolerances, structural integrity, and impressive durability even under pressure. By blending cutting-edge manufacturing techniques with deep industry knowledge, Ronwen Flanges delivers reliable carbon steel orifice flange solutions throughout South Africa, earning a solid reputation for consistent product performance and a customer-first approach.

Carbon Steel Orifice Flanges Germiston, Price of Inconel Orifice Flanges, Carbon Steel Orifice Flanges Exporter in South Africa, Carbon Steel Orifice Flanges Stockist in Gqeberha, Carbon Steel Orifice Flanges Exporter in Germiston, Carbon Steel Orifice Flanges Suppliers in West Cape Town, Carbon Steel Orifice Flanges Price in South Africa, List in Gqeberha, Carbon Steel Orifice Flanges Mbombela

Carbon Steel Orifice Flanges

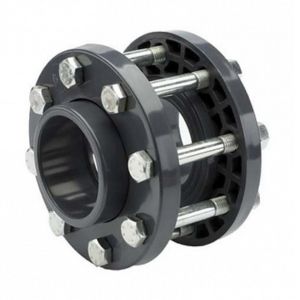

CS Orifice Flanges

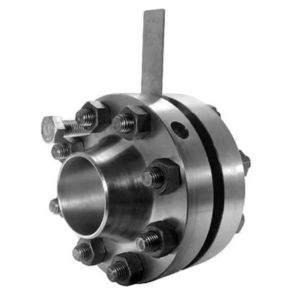

Carbon Steel Orifice Raised Face Flanges

The **Carbon Steel Orifice Flanges** from Ronwen Flanges are made from high-quality materials like ASTM A105 and A350 LF2, which guarantee mechanical strength and resistance to corrosion. These flanges are composed of carbon, manganese, and a few trace elements, providing excellent machinability and strength. With mechanical properties that include high tensile strength, good ductility, and the ability to withstand pressure and temperature fluctuations, these flanges are perfect for critical flow measurement tasks. They often come equipped with jack screws and tapped holes to fit orifice plates and meter taps, ensuring precise alignment and optimal performance in process control systems.

Carbon Steel Orifice Flanges Exporters in Gqeberha, Carbon Steel Orifice Flanges Manufacturers in West Cape Town, Carbon Steel Orifice Flanges Weight Chart in South Africa, Carbon Steel Orifice Flanges Weight Chart, Carbon Steel Orifice Flanges Supplier in Cape Town, Carbon Steel Orifice Flanges Supplier in Gqeberha, Carbon Steel Orifice Flanges Stockists in West Cape Town, Carbon Steel Orifice Flanges Price, Carbon Steel Orifice Flanges Supplier in Mbombela

Largest Carbon Steel Orifice Flanges Supplier in Cape Town, South Africa

Ronwen Flanges, a premier supplier in Cape Town, South Africa, specializes in high-quality Carbon Steel Orifice Flanges, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Carbon Steel Orifice Flanges Specification

Carbon Steel Orifice Flanges Specifications: ASTM A105/ ASME SA105

Carbon Steel Orifice Flanges Dimensions: ANSI/ASME B16.36, Series A & B, BS4504, BS 10, EN-1092, DIN, etc.

Carbon Steel Orifice Flanges Standard: ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Carbon Steel Orifice Flanges : Size :1/2″ (15 NB) to 48″ (1200NB)

Carbon Steel Orifice Flanges Class / Pressure: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Carbon Steel Orifice Flange Face Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Carbon Steel Orifice Flanges dimensions

Size in Inch	Size in mm	Outer Dia.	Flange Thick.	Hub OD	Weld Neck OD	Welding Neck Length	RF Dia.	RF Height	PCD	Orifice Hole dia	No of Bolts	Bolt Size UNC	RF Stud Length	Hole Size	ISO Stud Size	Weight in kg
		A	B	C	D	E	F	G	H	I
1	25	125	36.6	54	33.4	81	50.8	2	88.9	6.4	4	5/8	125	3/4	M16	4.5
1 1/2	40	155	36.6	70	48.3	84	73	2	114.3	6.4	4	3/4	135	7/8	M20	6.5
2	50	165	36.6	84	60.3	84	92.1	2	127	6.4	8	5/8	125	3/4	M16	7
2 1/2	65	190	36.6	100	73	87	104.8	2	149.2	6.4	8	3/4	135	7/8	M20	7.5
3	80	210	36.6	117	88.9	87	127	2	168.3	9.5	8	3/4	135	7/8	M20	9.4
4	100	255	36.6	146	114.3	90	157.2	2	200	12.7	8	3/4	135	7/8	M20	13.2
6	150	320	36.6	206	168.3	98	215.9	2	269.9	12.7	12	3/4	135	7/8	M20	14.6
8	200	380	39.7	260	219.1	110	269.9	2	330.2	12.7	12	7/8	145	1	M24	30
10	250	445	46.1	321	273	116	323.8	2	387.3	12.7	16	1	165	1 1/8	M27	41
12	300	520	49.3	375	323.8	129	381	2	450.8	12.7	16	1 1/8	180	1 1/4	M30	62
14	350	585	52.4	425	355.6	141	412.8	2	514.4	12.7	20	1 1/8	185	1 1/4	M30	84
16	400	650	55.6	483	406.4	144	469.9	2	571.5	12.7	20	1 1/4	195	1 3/8	M33	111
18	450	710	58.8	533	457	157	533.4	2	628.6	12.7	24	1 1/4	205	1 3/8	M33	138
20	500	775	62	587	508	160	584.2	2	685.8	12.7	24	1 1/4	215	1 3/8	M33	171
24	600	915	68.3	702	610	167	692.2	2	812.8	12.7	24	1 1/2	240	1 5/8	M39	247

Ronwen Flanges’ **Carbon Steel Orifice Flanges** find extensive use in sectors such as oil and gas, chemical processing, water treatment, power generation, and refineries. These flanges play a crucial role in flow measurement and control systems, typically installed in pipelines to gauge fluid or gas flow rates using orifice plates. Their design allows for accurate pressure drop measurements and seamless integration with instrumentation for monitoring and control.

Carbon Steel Orifice Flanges Stockist in South Africa, Carbon Steel Orifice Flanges South Africa, Carbon Steel Orifice Flanges Exporters in Germiston, Carbon Steel Orifice Flanges Price List, Carbon Steel Orifice Flanges Price List in Germiston, Carbon Steel Orifice Flanges Manufacturer in South Africa, Carbon Steel Orifice Flanges Price List in South Africa

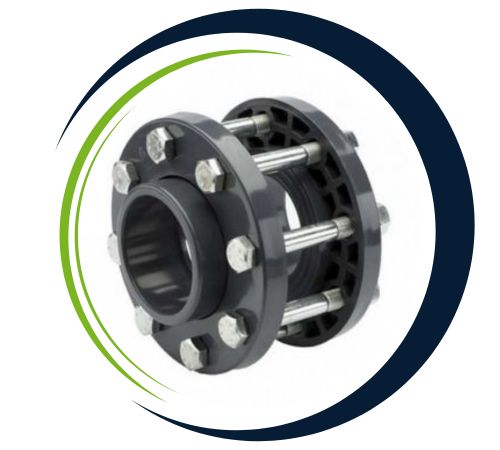

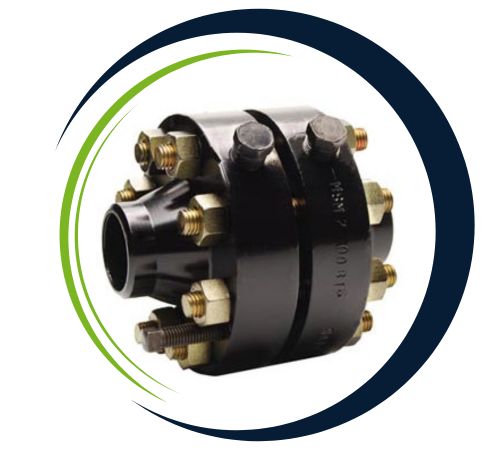

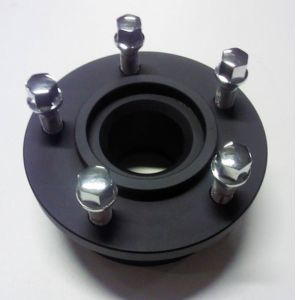

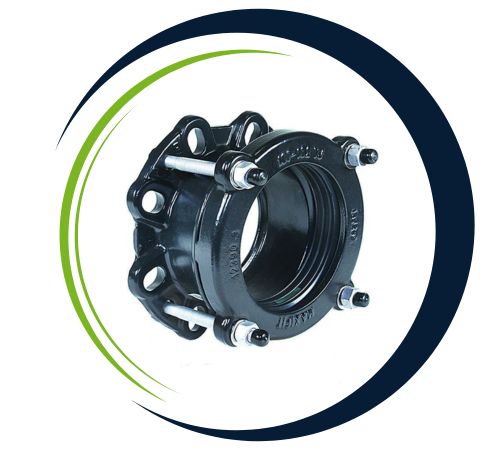

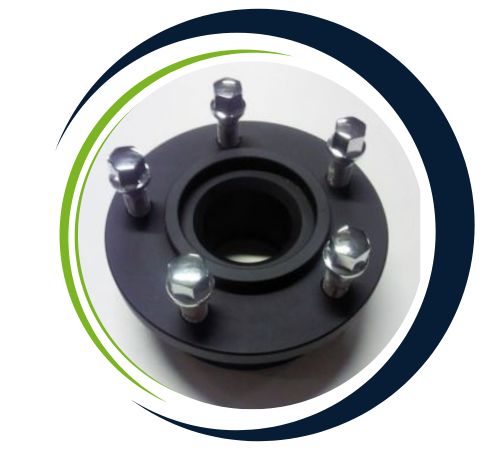

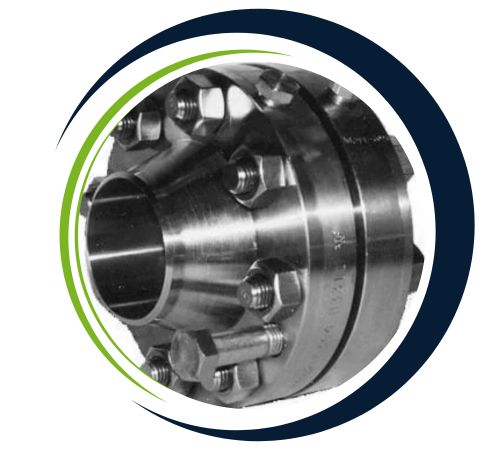

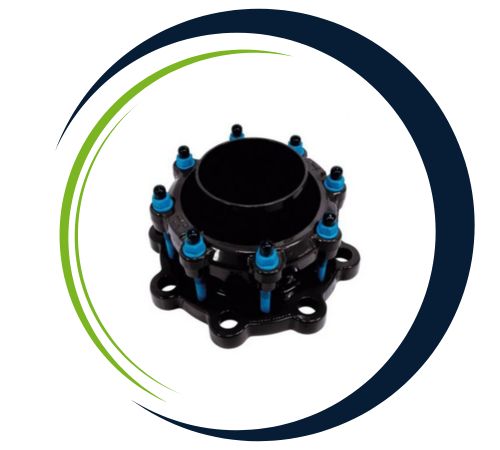

Types of Carbon Steel Orifice Flanges

Are Custom Sizes Available for Carbon Steel Orifice Flanges?

Yes, we offer custom sizes for Carbon Steel Orifice Flanges to meet specific project needs. Our team at Ronwen Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ronwenflanges.co.za.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
