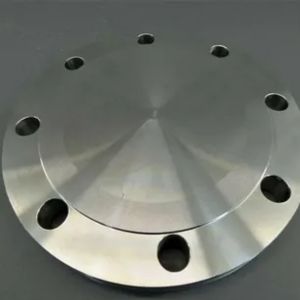

Ronwen Flanges, a prominent manufacturer and supplier located in Cape Town, South Africa, specializes in high-quality Alloy Steel Blind Flanges that are built for strength, reliability, and long-lasting performance. These flanges are expertly crafted to securely seal the ends of piping systems, making them crucial for maintenance, safety, and pressure management across a variety of industrial settings. Renowned for their exceptional mechanical properties and outstanding resistance to wear, corrosion, and extreme temperatures, Ronwen Flanges guarantees that every product adheres to international standards, providing reliable performance in critical sectors like oil and gas, petrochemicals, and power generation.
Alloy Steel Blind Flanges are made from a blend of alloying elements such as chromium, molybdenum, and carbon, which boost their tensile strength, hardness, and resistance to corrosion and oxidation. Typically, they boast a tensile strength ranging from 550 to 690 MPa and a yield strength of about 415 MPa, along with impressive ductility and toughness. The specific chemical makeup and heat treatment of the alloy ensure high resistance to scaling, creep, and fatigue at elevated temperatures, making these flanges perfect for demanding industrial piping and pressure vessel applications.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 Ff9 Alloy Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Ronwen Flanges, a leading supplier in Cape Town, South Africa, offers an extensive selection of Alloy Steel Blind Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
These Alloy Steel Blind Flanges are commonly used to seal pipelines, valves, and equipment in oil refineries, petrochemical plants, power generation facilities, and high-pressure industrial systems. They are ideal for both temporary and permanent closure of piping sections during maintenance or inspection, ensuring safety and preventing leaks. With their sturdy construction, corrosion resistance, and ability to endure high pressure and temperature, they are essential in critical applications where durability, reliability, and leak-proof performance are a must.
Yes, we offer custom sizes for Alloy Steel Blind Flanges to meet specific project needs. Our team at Ronwen Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ronwenflanges.co.za.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
