Ronwen Flanges, a reputable manufacturer and supplier located in Cape Town, South Africa, specializes in high-quality **Stainless Steel 253MA Flanges** that are engineered for exceptional resistance to high-temperature oxidation, corrosion, and scaling. Crafted from top-notch 253MA stainless steel, these flanges deliver dependable, long-lasting performance even in the toughest industrial settings. Ronwen Flanges prides itself on precision engineering and adherence to international standards, making their 253MA flanges perfect for **power generation, petrochemical, chemical processing, marine, and offshore industries**, where the need for durable, corrosion-resistant, and stable piping components is critical due to exposure to high temperatures and aggressive media.
**Stainless Steel 253MA Flanges** are primarily made up of **iron, 21% chromium, 11% nickel, and trace amounts of manganese, nitrogen, and copper**, featuring low carbon content to boost high-temperature performance. They showcase impressive **mechanical properties**, including a **tensile strength of 515–700 MPa**, **yield strength of 205–275 MPa**, and commendable ductility. These flanges are known for their remarkable resistance to **oxidation, carburization, and scaling** at elevated temperatures, while also retaining strength and stability in corrosive environments, making them ideal for critical industrial applications.
| Standards | ANSI/ASME B16.5, EN Flanges, BS 10, B16.47 Series A & B, EN-1092, ASME Flanges, BS Flanges, B16.48, DIN, DIN Flanges, GOST Flanges, ANSI Flanges, BS4504. |
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Production technique | Forged, Heat treated and machined |
|
Special design |
As per your drawing |
| AS, ANSI, BS, DIN and JIS | |
| 15 NB (1/2″) to 200 NB (8″) | |
| Equal and Reducing Configurations | |

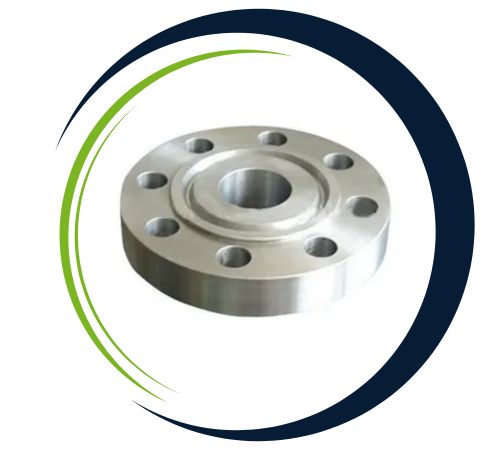

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Small Tongue, Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Tongue & Groove, Large Male-Female (LMF). |
| Largest Bore Diameter Sizes | NPS ≤ 10 |
| Minimum & Maximum Size | 1/2″ To 48″ |
| Origin | Indian / Japan / Korean / West Europe / USA |
| JIS Standard | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| A182 Flange EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
|
Test Certificates |
EN 10204/3.1B |
| Raw Materials Certificate | |
| 100% Radiography Test Report | |
| Third Party Inspection Report, etc. | |
| Application | Gas, Power, Chemical, Metallurgy, Petroleum, Shipbuilding, Construction etc. |
| Grade | C | Ni | Si | N | S | Mn | P | Cr | Ce | Fe |
| 253 MA | 0.05 – 0.10 | 10.00-12.0 max | 1.40 -2.00 max | 0.14-0.20 max | 1.40-2.00 max | 0.80 max | 0.04 max | 20.00 – 22.00 | 0.03 – 0.08 | Balance |
| Tensile Strength | Elongation | Yield Strength (0.2%Offset) | Hardness |
| 600 | 40% | 310 | 95(Rockwell B) |

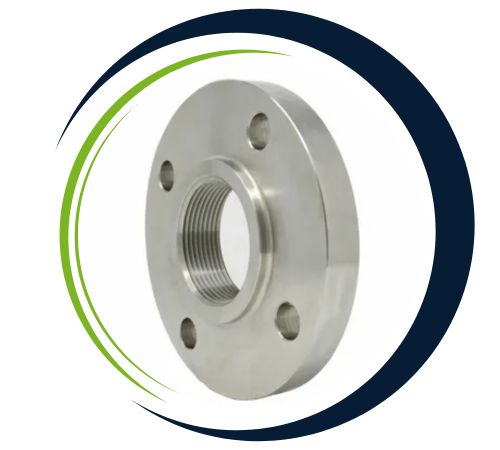

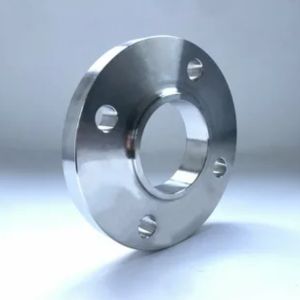

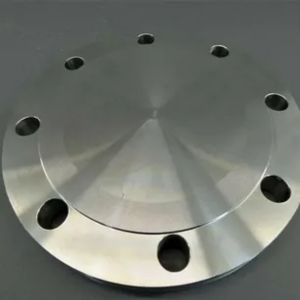

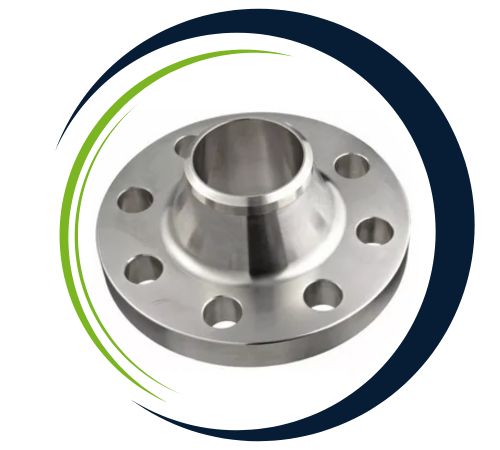

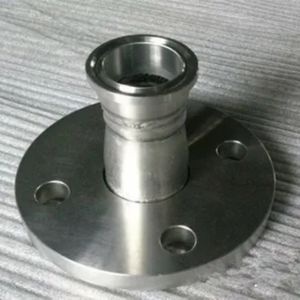

Ronwen Flanges, a leading supplier in Cape Town, South Africa, offers an extensive selection of Stainless Steel 253MA flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| STANDARD | WERKSTOFF NR. | UNS |
| 253 MA | 1.4835 | S30815 |
You’ll find **Stainless Steel 253MA Flanges** commonly used in **boilers, heat exchangers, piping systems, and superheater tubes**, where high-temperature and corrosion resistance are paramount. They are particularly suited for **power plants, refineries, petrochemical units, and marine applications**, ensuring leak-proof, reliable connections and long-term performance. With their outstanding blend of **high-temperature strength, oxidation resistance, and corrosion durability**, 253MA flanges are the go-to choice for essential industrial systems operating under extreme conditions.
| Nominal Size | Outside Diameter (OD) | Min. Thickness (T) | RF Dia. (R) | No. of Bolt Holes | Diameter of Holes | Bolt Circle (BC) | SO Bore ID (SB) | WN Bore ID (WB) | Dia. Hub Base (HB) | Dia. of Hub Top (HT) | SO LTH (SL) | WN LTH (WL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
| 3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
| 1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
| 11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
| 11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
| 2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
| 21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
| 3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
| 31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
| 4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
| 5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
| 6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
| 8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
| 10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
| 12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
| 14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
| 16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
| 18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
| 20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
| 22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
| 24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size | Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 95 | 67 | 4 | M12 | 14 |
| AS 2129 | Table C | 95 | 67 | 4 | 13 | 14 |
| Table D | 95 | 67 | 4 | 13 | 14 | |
| Table E | 95 | 67 | 4 | 13 | 14 | |
| Table F | 95 | 67 | 4 | 13 | 14 | |
| Table H | 114 | 83 | 4 | 16 | 17 | |
| Table J | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 | ANSI 150 | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) | PN6 | 80 | 55 | 4 | M10 | 11 |
| PN10 | 95 | 65 | 4 | M12 | 14 | |
| PN16 | 95 | 65 | 4 | M12 | 14 | |
| PN20 | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 | 95 | 65 | 4 | M12 | 14 | |
| PN40 | 95 | 65 | 4 | M12 | 14 |
Yes, we offer custom sizes for Stainless Steel 253MA flanges to meet specific project needs. Our team at Ronwen Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@ronwenflanges.co.za.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
